Tired of load shedding and power interruptions?
Our top of the line SMART inverter system has SMART functionality. The system is capable of running a TV, Router, Smart TV box, Laptop, chargers, fridge, led lights, etc.
Specifications:
-1000w Pure sine Wave Smart plug and play inverter system.
-Dual Battery box with Wheels.
-2x 100ah batteries included.
Battery time to 50% depth of discharge.
-50w Load = 20 Hours
-100w load = 10 Hours
-150w load = 7.0 Hours
-200w load = 5.0 Hours
-250w Load = 4 Hours
Features:
-Over-current protection.
-Maximum power (Watts) protection.
-electricity consumption monitoring
-Remote start up and shutdown.

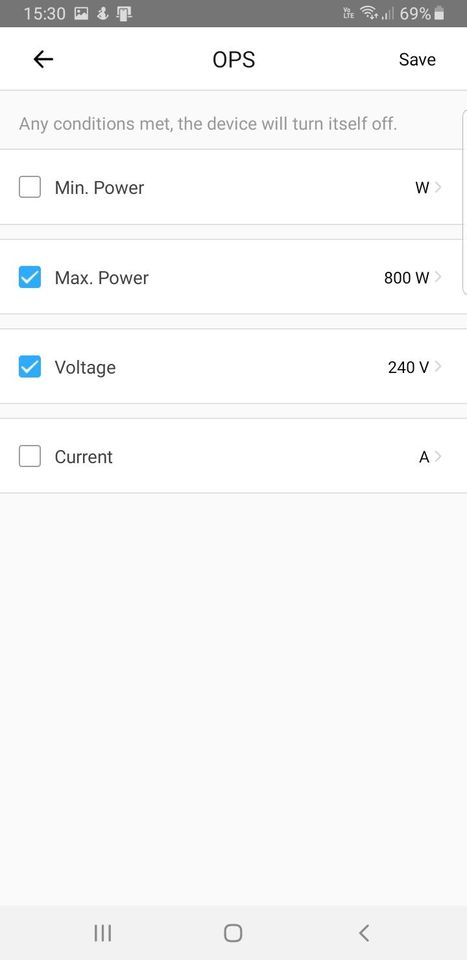

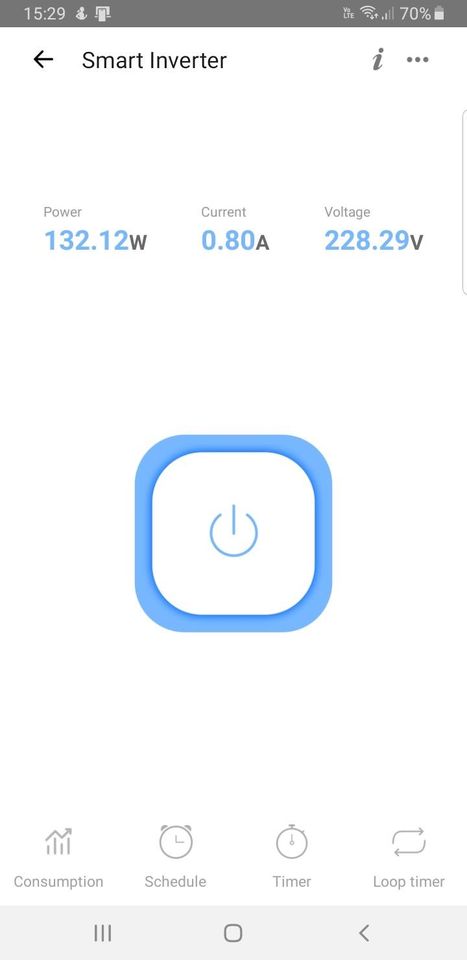

-Monitored and control via phone app.
-Calculate battery life using phone app.
-Switch load on/off for prolonged power cuts to protect the batteries.
-Do all of this from your smartphone. No matter where you are.
-Requires WiFi Connection for SMART features and control to work remotely.
Synapse 1000w Inverter:
Inverter Output:
Default Battery System Voltage: 24V
Rated Power: 1000w
Surge Rating (20ms): 3000w
Waveform: Pure Sine Wave
Rated Output Voltage: Inverter: 230V AC (+/- 2% RMS), AVR 195V AC – 245V AC
Inverter Efficiency (Peak): >81%
Bypass Efficiency: >95%
Output Transfer Time: Typical: 6ms 10ms (Max)
Battery:
Minimum Start Voltage: Low Battery Voltage Cutoff +0,5V
Low Battery Alarm: Low Batter Voltage Cutoff +1V
Low Battery Cuttoff: 20 ~ 24V DC
High Battery Cutoff: Nominal Voltage +1V
AC Charge:
Floating Voltage: 27 / 27.2 / 27.4V DC
Nominal Voltage:27.6 ~ 29V
Maximum Charge Current: 1000W
Bypass & Protection:
Input Waveform: Pure Sine Wave
Input Frequency: 50Hz or 60Hz
Low Frequency Trip: 45+ / -0.2Hz
Low Frequency Trip: 65+ /0.2Hz
Overload Protection: 110% ~ 125% R Load fault after 30S 125% ~ 150% R Load fault after 3s > 150% R Load fault after 500ms
Over Temperature Protection: > 90°C
Bypass Output Protection: 10A 250V AC
Output Circuit Protection: YES
Mechanical Specification:
Dimensions: 385 x 325 x 190mm
Weight: 13.5kg
Shipping Dimensions: 420 x 385 x 225mm
